Stainless Steel Sheet Metal Fabrication Perth: Precision Cone Development

When a stainless steel component needs to transition from a technical drawing into a precisely fabricated shape, getting the development right from the beginning is critical.

This recent stainless steel sheet metal fabrication project from CSM Fabrication & Welding showcases the process involved in custom cone development — taking a defined design, developing the required sheet-metal profiles, forming the individual sections and fabricating them into finished components.

For custom fabrication work in Perth, projects like this demonstrate why experience in sheet metal development, forming, fit-up and welding matters.

What Is Cone Development in Sheet Metal Fabrication?

Cone development is the process of determining the flat sheet profile required to create a three-dimensional conical or tapered component.

Rather than simply cutting a piece of stainless steel and attempting to form it into shape, the geometry needs to be developed accurately so that once the material is cut and formed, the required dimensions and transitions can be achieved.

Depending on the design, this can involve:

• Working from technical drawings and specified dimensions
• Developing the required flat sheet profile
• Accurately marking the stainless steel
• Cutting individual sections
• Forming the material into the required geometry
• Checking dimensions and fit-up
• Welding seams and adjoining components
• Adding fittings, attachment points or other fabricated features

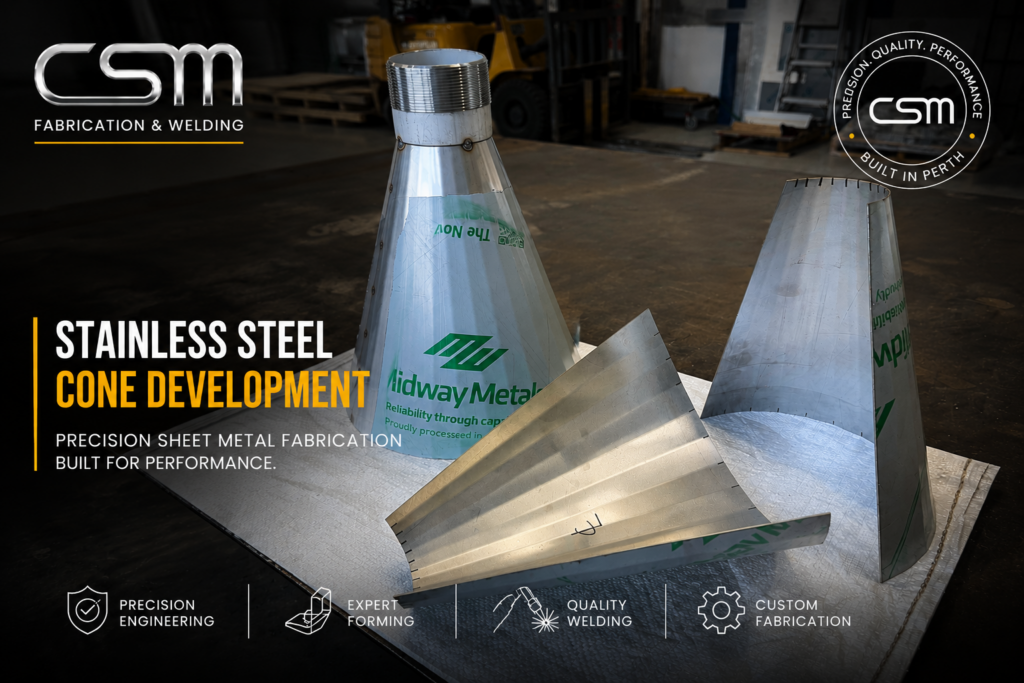

The photographs from this CSM project show this process progressing from the original cone development through to the finished stainless steel assemblies.

From Technical Drawing to Stainless Steel Component

Good custom fabrication starts well before welding begins.

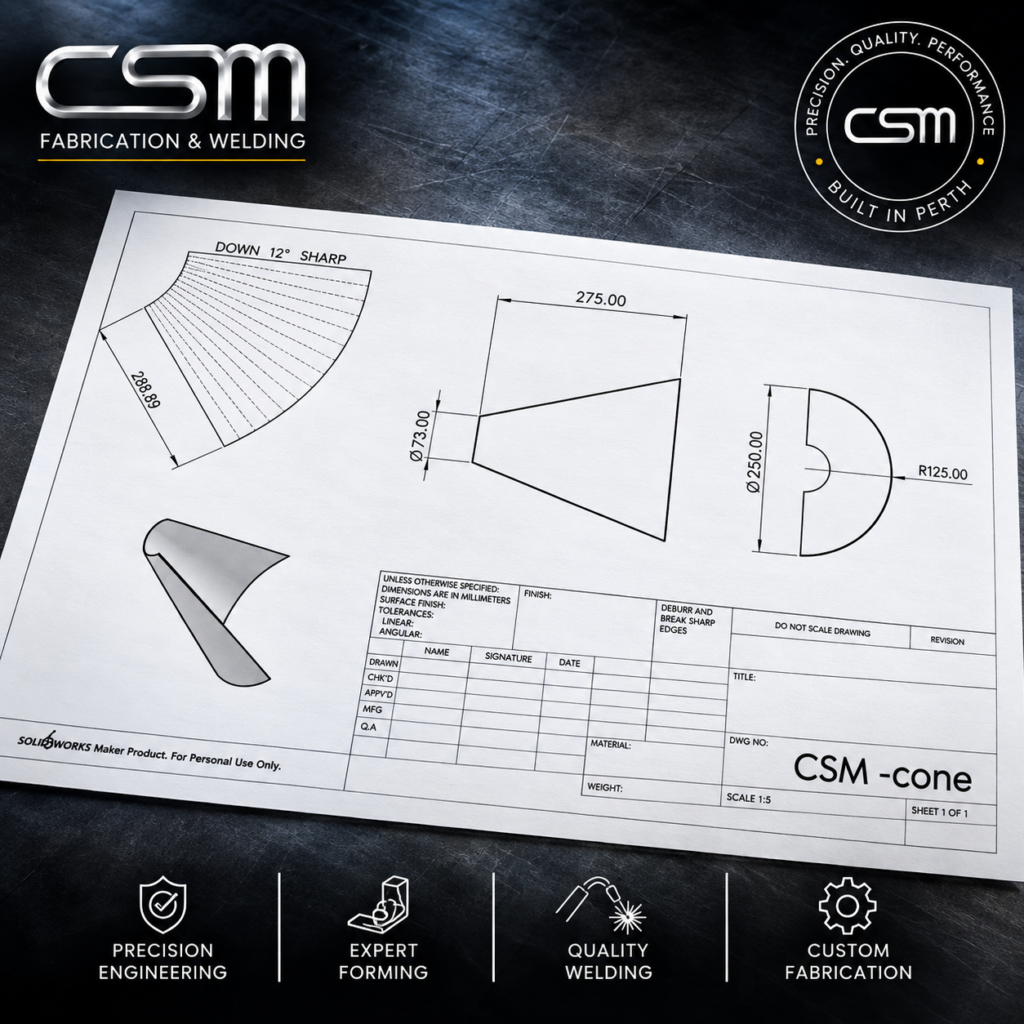

For this project, the required cone geometry was established from the technical drawing before the individual sections were developed.

The flat stainless steel pieces were marked with reference points along the curved edges to assist with achieving the required form.

This development stage is important because inaccuracies introduced here can affect everything that follows.

When fabricating unusual shapes, careful planning helps reduce unnecessary material waste while making the forming and fit-up stages more controlled.

Developing the Stainless Steel Sheet

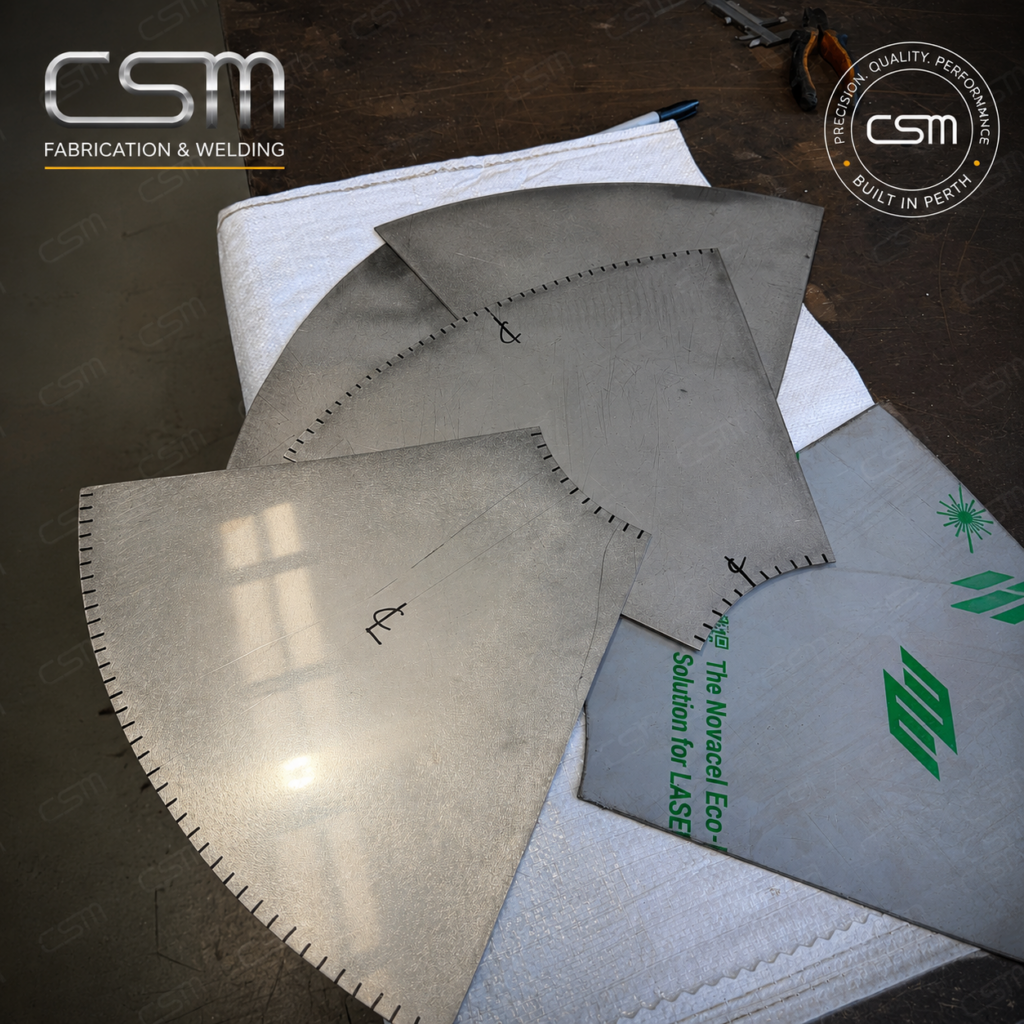

Once the dimensions were established, the cone sections could be transferred to the stainless steel sheet.

The photographs provide a good example of what custom sheet metal fabrication actually involves.

Unlike mass-produced components, custom work often requires the fabricator to translate a drawing into something that can physically be manufactured.

The material needs to account for the geometry of the finished component while still allowing it to be formed and joined correctly.

This combination of planning and hands-on fabrication is particularly important when producing tapered, curved or transitional components.

Forming the Cone

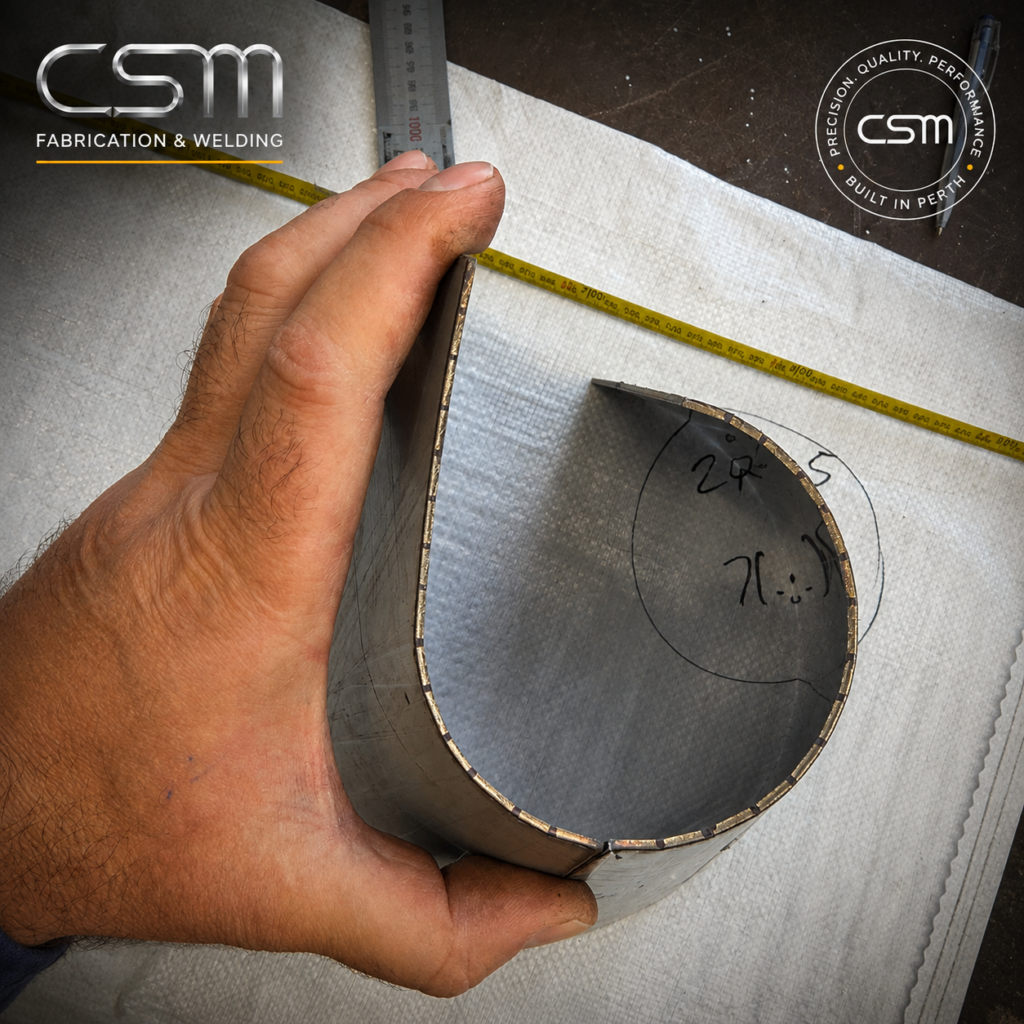

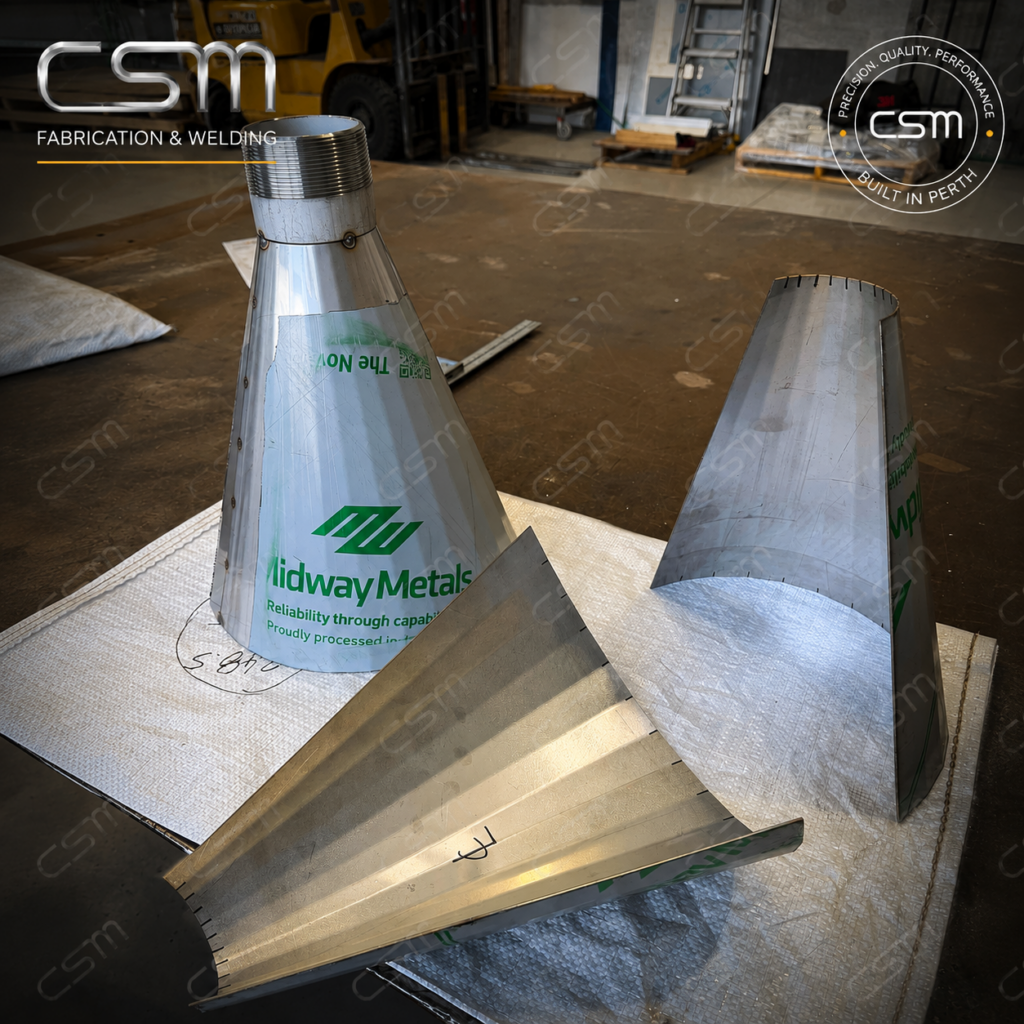

The next stage involved progressively forming the developed stainless steel sheet into its required conical shape.

This is where the flat pattern begins to resemble the final component.

Careful forming helps maintain the intended profile while bringing the edges into position for fit-up and welding.

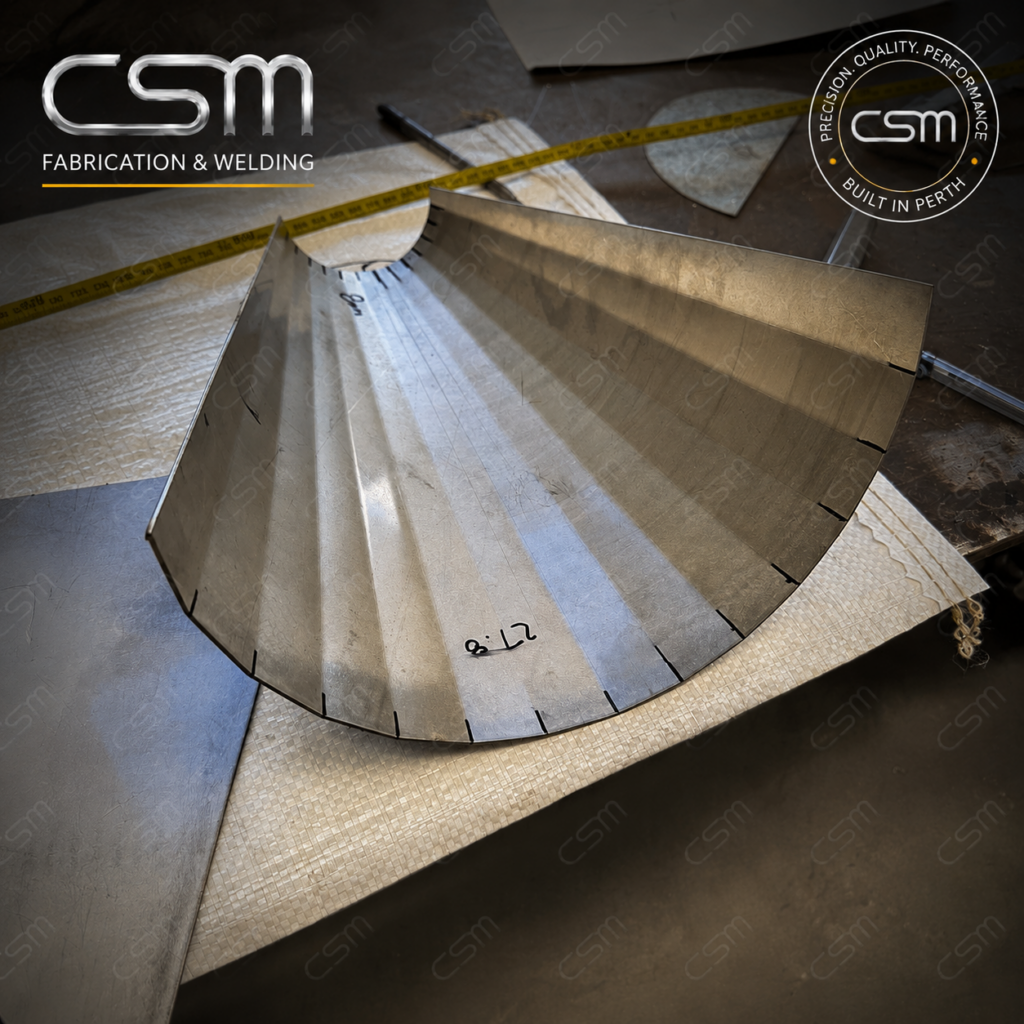

The development marks visible throughout the project also provide useful reference points during fabrication.

Rather than forcing the material into shape, the process progressively transforms the stainless steel into the geometry established during development.

Fit-Up and Fabrication

With the main cone formed, additional components could then be positioned and fitted.

The project photographs show the transition into the threaded cylindrical section at the narrow end of the cone.

Fit-up is an important part of stainless steel sheet metal fabrication, particularly where several differently shaped components need to meet.

Accurate alignment before welding helps achieve a better finished assembly and reduces the amount of correction required later in the fabrication process.

Stainless Steel Welding

Once the components had been formed and fitted correctly, the assemblies could be welded.

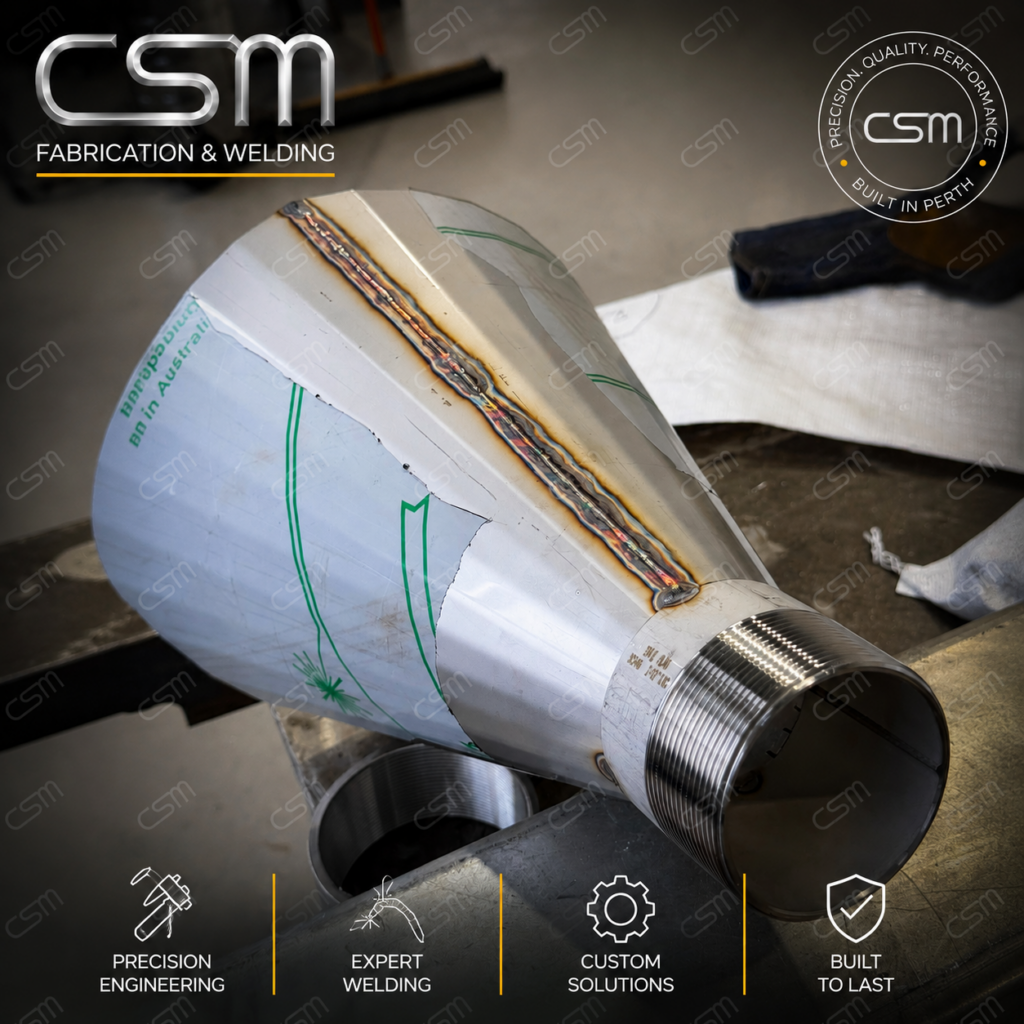

The close-up photographs from the project show the welded longitudinal seam running along the stainless steel cone as well as the connection surrounding the threaded section.

Stainless steel welding requires appropriate preparation and control to produce a strong, functional fabricated component while managing distortion and heat input.

For custom fabrication projects, the welding stage is only one part of the job. The quality of the finished component also depends heavily on everything that happened beforehand — development, cutting, forming and fit-up.

Adding the Final Fabricated Components

The finished assemblies also incorporate welded attachment points and chain assemblies.

These additional elements demonstrate another advantage of custom fabrication.

Instead of manufacturing an isolated sheet metal component, CSM can incorporate different fabricated elements into the finished assembly according to the project’s requirements.

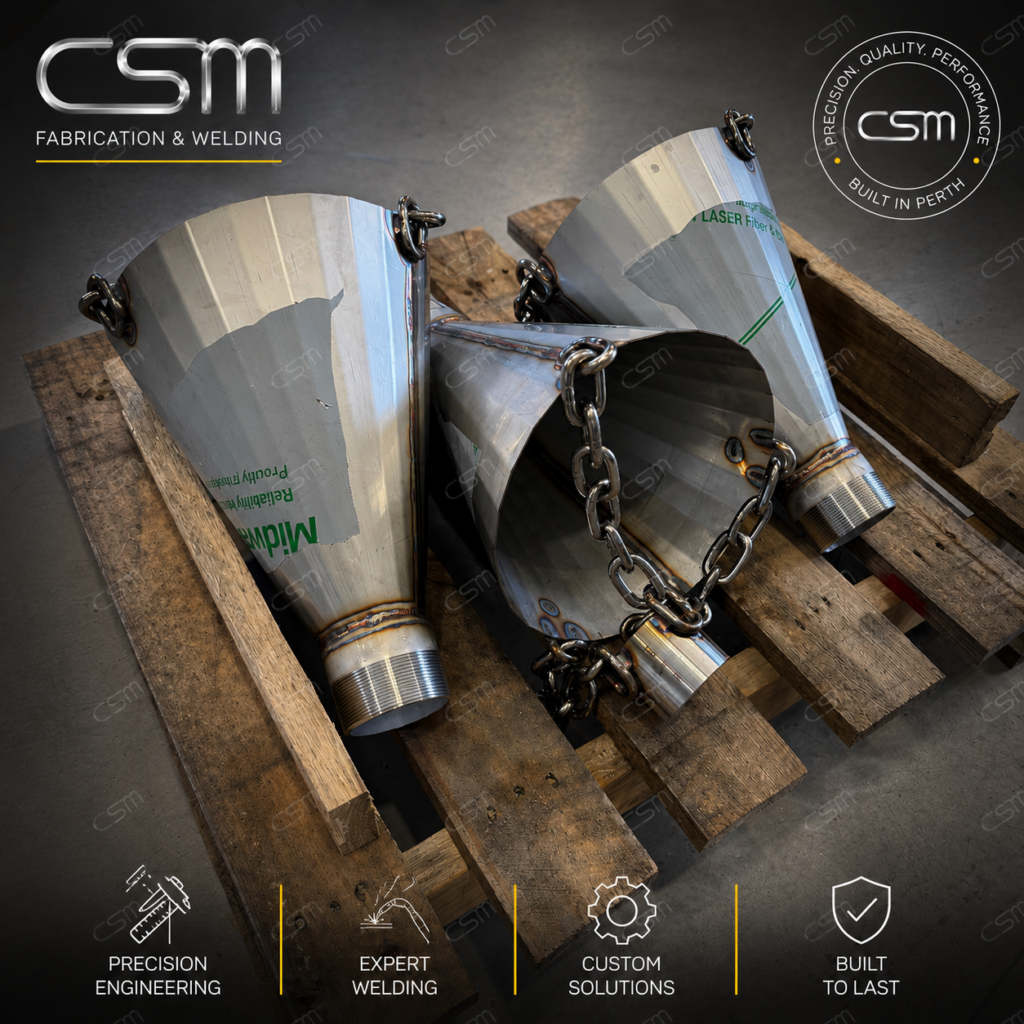

The completed units shown together on the workshop pallet provide a clear progression from the original technical drawing and flat stainless sheet to a repeatable batch of fabricated components.

Why Stainless Steel for Custom Sheet Metal Fabrication?

Stainless steel is widely used across industrial and commercial fabrication because it combines strength with corrosion resistance and a professional finished appearance.

Depending on the application and selected grade, stainless steel can be suitable for components exposed to demanding operating environments, moisture or applications where long-term durability is important.

However, the material still needs to be fabricated correctly.

Cutting, forming, fit-up and welding all influence the quality and dimensional accuracy of the finished component.

Custom Stainless Steel Sheet Metal Fabrication in Perth

Not every fabrication project can be solved with an off-the-shelf component.

When a project requires an unusual shape, specific dimensions or a component designed around existing equipment, custom fabrication provides the flexibility to manufacture something for the actual application.

CSM Fabrication & Welding provides custom stainless steel sheet metal fabrication in Perth, working with clients on components and fabricated assemblies for industrial, commercial and other demanding applications.

Capabilities include custom sheet metal fabrication, stainless steel fabrication, aluminium fabrication, steel fabrication, welding, forming and project-specific fabrication.

Projects such as this cone development demonstrate the process involved in turning technical requirements into finished metal components.
